Key Features

• 16 Channel 4K Ultra HD Display Resolution.

• Compression H.264/ H.265/ MJPEG/ MPEG4.

• Max 320Mbps incoming bandwidth.

• Up to 12MP resolution preview and playback.

• Support/ IPhone, iPad and Android mobile app.

• Backup way USB Device, Network and eSATA.

• 1 RJ45 10M/100M/1000M self-adaptive LAN ports, 2 Rear USB3.0 port,

           2 Front USB2.0 ports, 1 port RS232 and 1 port RS485.

• 2 HDMI/ 1 VGA simultaneous video output.

• 16 Channel Alarm input and output.

• 8 SATA III Ports (up to 6TB capacity for each HDD) and 1 port eSATA.

• 3D intelligent positioning with IP PTZ camera.

• Support Motion Detection, MD Zones, Video Loss and Tampering.

• Support ONVIF 2.4 and CGI Conformant.

• Support RAID 0/ 1/ 5/ 6/ 10.

• Support N+M fail over.

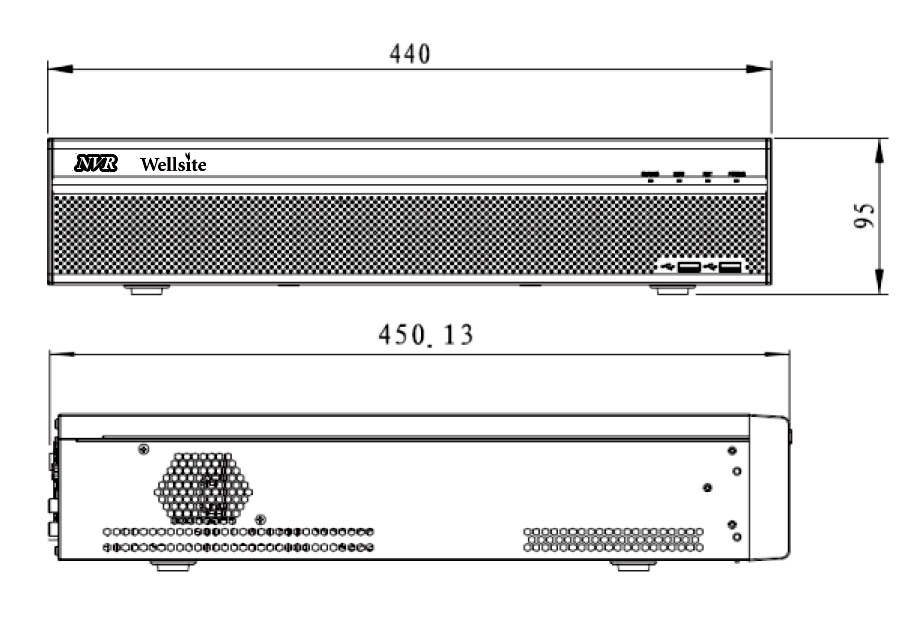

Dimensions (mm.)
